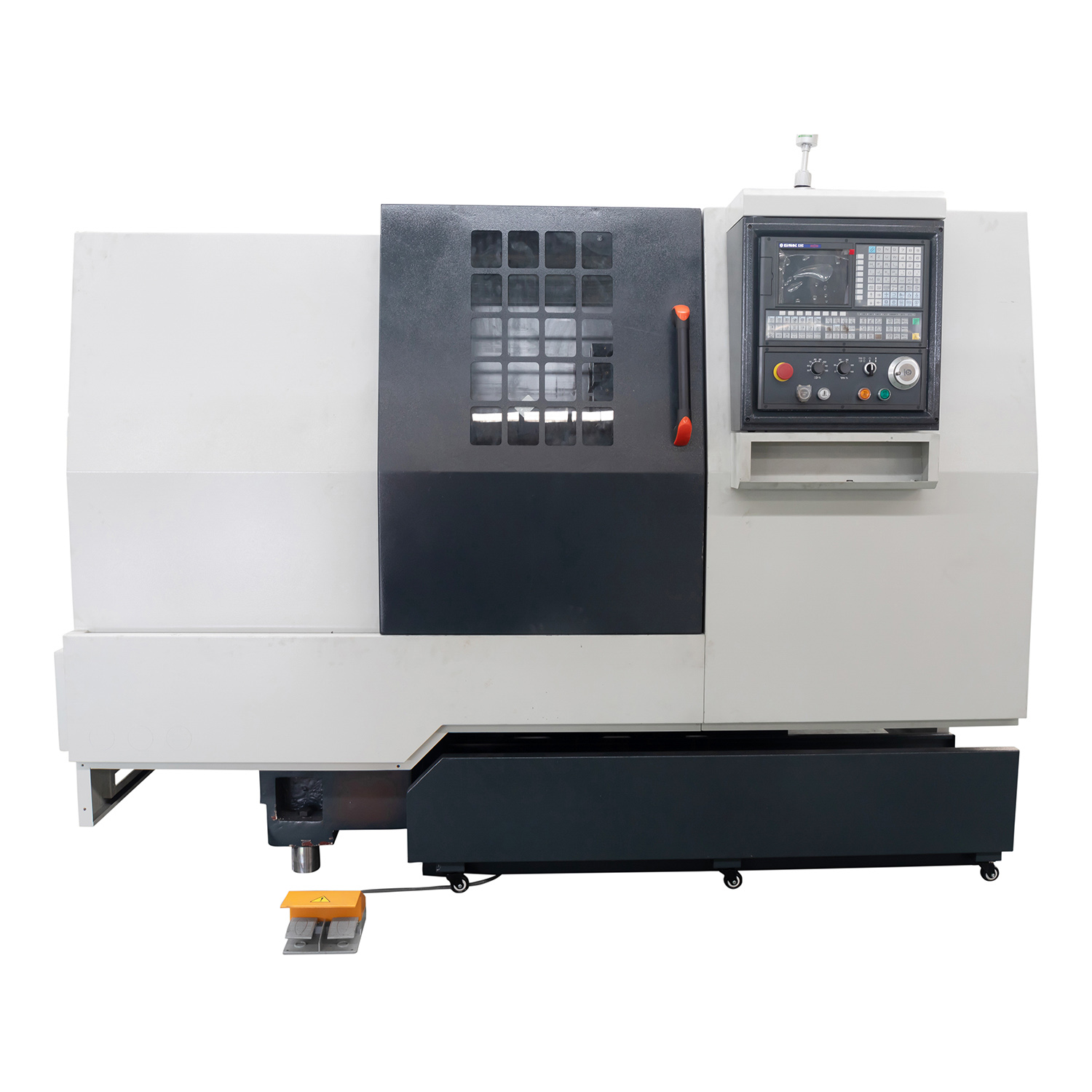

Slant bed CNC Lathe CK28 CK30 CK35 CK36 CK40

FEATURES:
*Slant bed CNC lathe machine
*Equipped with 45° integrated design with good aseismatic and high rigidity;
*Spindle with the integrated quill structure can achieve high speed swing,high rigidity and precision;

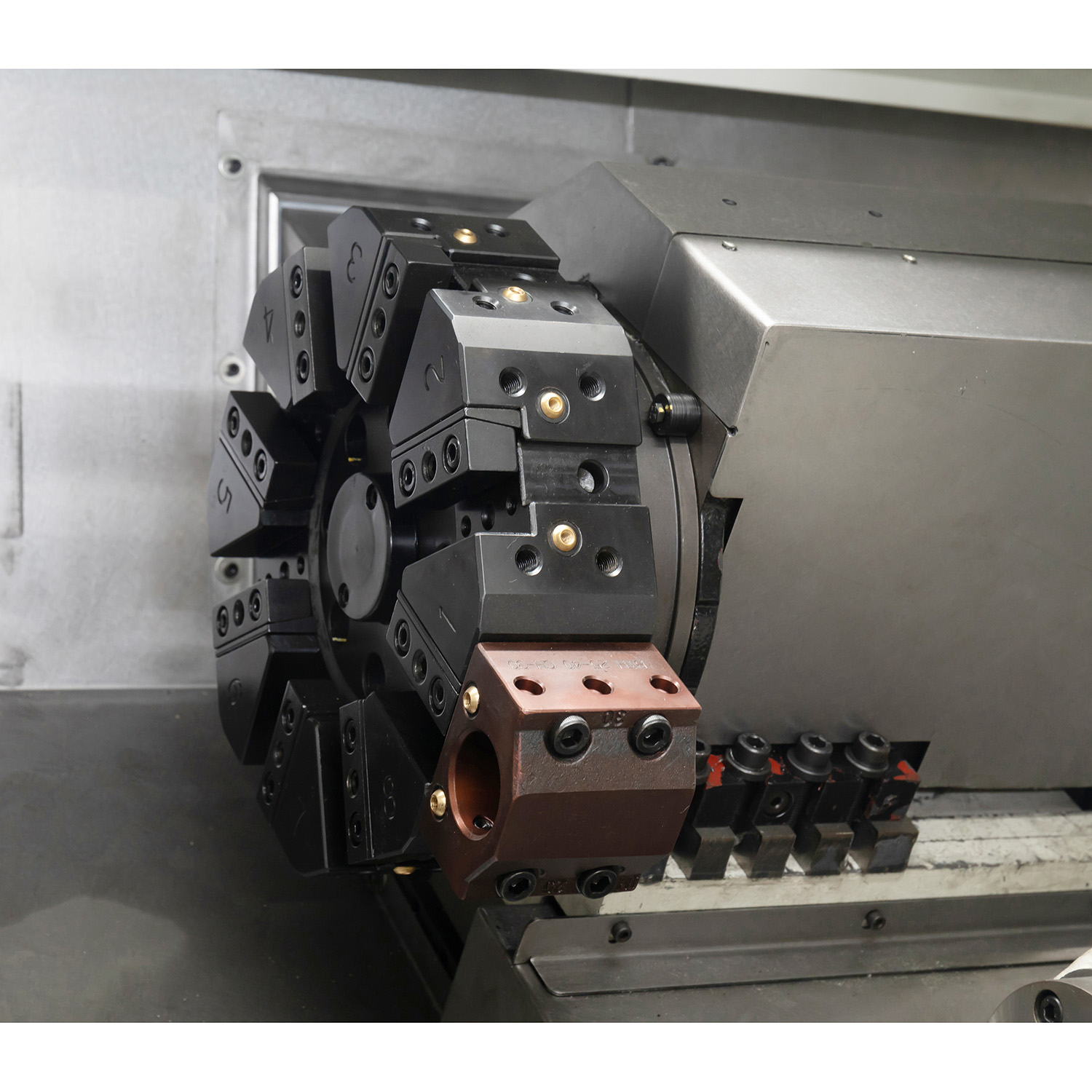

*With hydraulic turret can get high positioning, fast speed for tool changing and high performance;
*Direct connection adopted on feeding motor and leadscrew can assure the machining precision and positioning accuracy;
*Tailstock can be adopted by hydraulic driving to make sleeve travel bigger and easy operation;
* Complete closed cover can protect the iron scraps splashing out.

Startard Accs.:
*Hollow hydraulic 3-jaw chuck;
*Standard soft jaw;
*Hollow rotary oil cylinder;
*Alarm lamp;
*Pederal switch;
*Automatic lubricating system;
*Oil pressure system;
*Cooling system;
*Hydraulic turre &tailstock;

Optional Accs.:
*Automatic Bar-feeder
*Chip converyor;
*Collets
*Automatic safety door
*Standard hard jaw
*Servo turret

Quantity:
  • CK28 CK30 CK35 CK36 CK40
  • WHITE EAGLE
  • 8458110000
项目    ModelCK28CK30CK35CK36CK40
床身最大上回转直径Max.swing over   bed (mm)Φ280Φ300    Φ300Φ350    Φ350    Φ360  Φ360  Φ400
最大加工直径Max.diameter   of work-pieoe(mm)Φ220Φ300    Φ240Φ320    Φ320Φ360  Φ360  Φ300
刀架上最大加工直径Max.swing   over toolpos (mm)Φ490Φ120    Φ120Φ130    Φ130Φ180  Φ200  Φ250
最大加工长度Msx.machining   length(mm)200300120220180300400500370300
两顶尖距离Distance   between centers(mm)


600
400
主轴头形式Spindle   nose  style
A2-4A2-4            A2-5A2-5  A2-6A2-5A2-5  A2-6
液压卡盘Hydraulic  chuck#20colletΦ135Φ135     Φ169 Φ169Φ210Φ169  Φ169  Φ210
主电机功率Spindle  motor(KW)2.2/3.73.7/5.55.5/7.55.5/5.77.5/115.5/5.77.5/117.5/11
主轴最高转速Max.Spindle   Speed.(mm)60004200/5500450045003600600045003000
主轴孔直径Spindle   bore diameter.(mm)Φ25Φ41Φ46Φ56Φ56Φ61Φ56Φ56Φ57
棒料直径Bar   auto-feeding bure.(mm)Φ24Φ30Φ34Φ45Φ45Φ45Φ45Φ45Φ45
X/Z轴行程X/Zaxes   spec(mm)250/250280/300380/330380/330300/400230/600470/400160/400
X/Z轴快速移动Rapid   traverse X/Z axes (m/min)12/1612/1612/1612/1612/1612/16
X/Z轴(300mm)Position   accuracy of X/Z axes(300mm)±0.005/±0.005±0.005/±0.005±0.005/±0.005±0.005/±0.005±0.005/±0.005±0.005/±0.005
X/Z轴(300mm)Repeated   position aocuracy of X/Z axes(300mm)±0.003/±0.003±0.003/±0.003±0.003/±0.003±0.003/±0.003±0.003/±0.003±0.003/±0.003
刀塔或排刀Toolpost   stationGang   toolGang   tool T8 toolpost Gang   tool T8 toolpost Gang   tool T8 toolpost  T8 toolpost Gang   tool T8 toolpost
套筒直径Barrel   travel of tailstock(mm)No   tailstockNo   tailstockNo   tailstockNo   tailstockNo   tailstockNo tailstockΦ72No   tailstockΦ65
套筒行程Barrel   tapper of tailstock(mm)10080
尾座最大行程Max.travel   of tailstock(mm)600300
尾座套筒锥孔Max.tapper   of tailstock(mm)M.T.4M.T.4
外形尺寸(长x宽x高)Overall   size(L*W*H)(mm)2400×1450×15502500×1500×16002600×1500×16002800×1700×17002700×1770×23203000×1700×1800
重量(kg)Machine   Weight(kg)18002000200020002000300031003200
