CNC MILLING MACHINE XK7124 XK7124A XK7124B

FEARURES:
*4pcs Tool stations on worktable with high efficiency. can finish all process of surface machining, hole machining and tapping by clamping workpiece;
*High and low step speeds available and stronger torque for low step speed;
*3 axis transmission by precision ball leadscrew,servo motor driven;
*Two styles of tool change avaiable, manually pneumatically.
*Various famous CNC controllers supplied with for more choice;
*Machine stand and machine body are designed separately for easy and flexiable installment by user.

Standard Accs.:
*Working lamp
*Coolant system

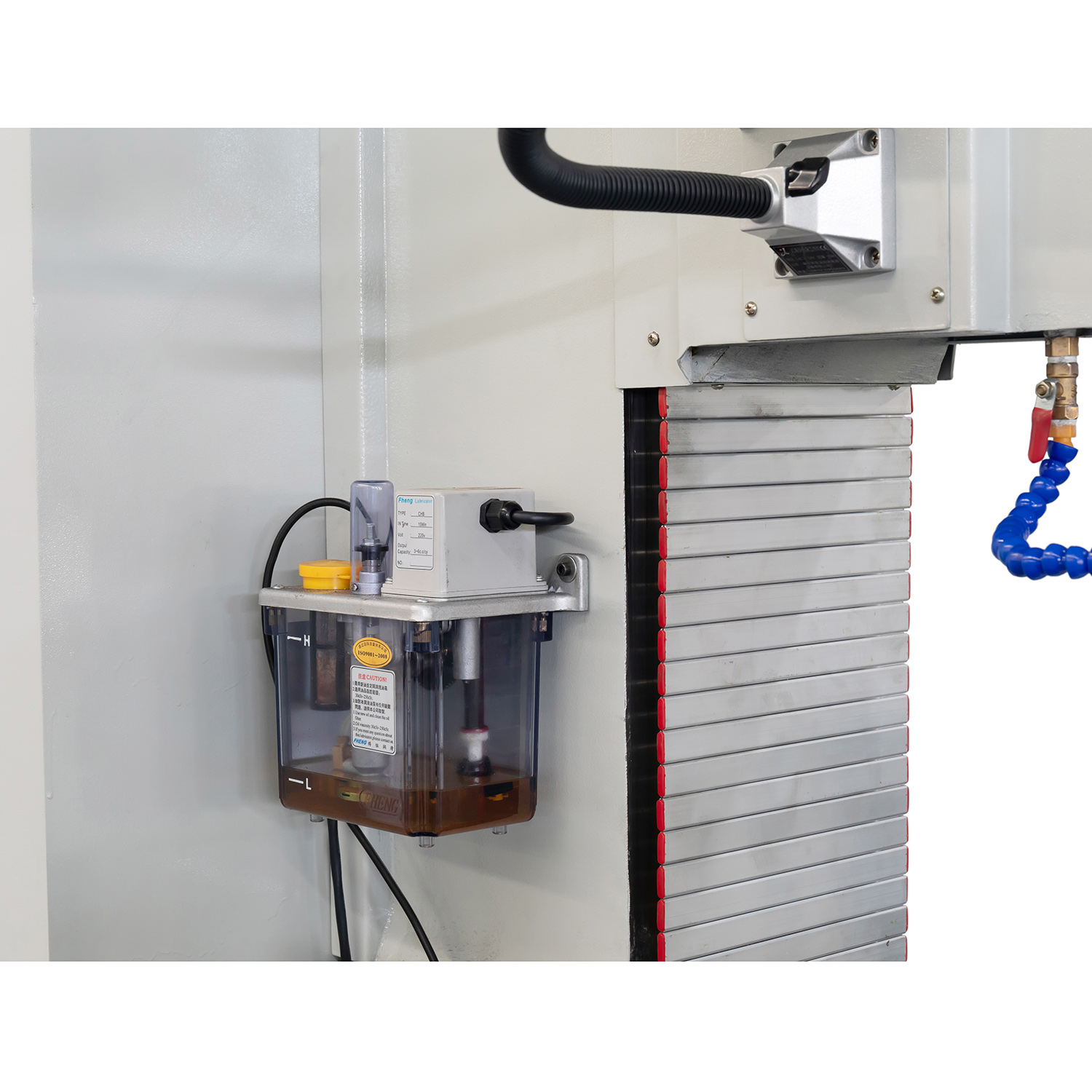

*Automatic lubricating system
*Siemens controller system

Optional Accs.:
*GSK or FANUC control system
*Tool-released and clamped pneumatically
*Heightened column ( Z travel:50-550mm)
*900*240mm worktable
*160mm parallel vice
*Tool holder
*Iron casting machine stand

*

Quantity:
  • XK7124 XK7124A XK7124B
  • WHITE EAGLE
  • 8459619000
技术参数ModelXK71247124AXK7124B
工作台尺寸(长x宽)Size of   worktable(L×W)(mm)800×240800×240
900×240 Optional900×240   Optional
T(槽宽*槽数*间距)T   slot(width ×qty×spaces)(mm)16×3×6016×3×60
工作台最大承重Max   loading weight on worktable(kg)6060
X/Y/Z轴行程X/Y/Z-Axis   travel(mm)430×280×400430×280×400
530×280×400530×280×400
主轴鼻端到工作台面距离Distance   between spindle nose and table(mm)60-46050-450
50-550
主轴中心到立柱的距离Distance   between spindle center and column(mm)297297
主轴转速Spindle   speed(r/min)100-4000100-6000
主轴锥度Spindle   taperBT30BT30
刀具夹紧方式Tool   clamping wayManual/PneumaticPneumatic
ATC容量(可选)ATC   capacity(optional)no4pcs   Simple ATC
切削进给速度Feeding   speed(mm/min)0-20000-2000
三轴快速移动速度Rapid   feeding speed:X,Y,Z axis(m/min)66
定位精度Positioning   accuracy(mm)0.040.04
重复定位精度Repeatability   accuracy(mm)0.020.02
设定单位Min.set   unit(mm)0.0010.001
主电机功率Main   motor power (kw)1.5(A/C   motor)2.2/3.7
进给电机功率Feeding   motor power:X/Y/Z Axis(kw)1/1/11/1/1.5
最大刀具尺寸Max.size   of tool(mm)Φ60×175Φ60×175
刀具最大重量Max.loading   weight of Tool(kg)3.53.5
机床净重(包括机架)N.W(include   machine stand)(kg)9001000
外形尺寸(长**高)Overall   size(L×W×H)(mm)1640×1205×1950(2050)1640×1205×1950(2050)
包装尺寸(长**高)Packing   size(L×W×H)(mm)1900×1620×2480(2580)1900×1620×2480(2580)
装箱数量Loading   amount(20")3sets3sets
