MACHINING CENTER (V) XK7124L/VMC24L VMC25L VMC530L VMC420L

FEATURES:
*Specially design for mini-size parts machining;
*With space occupied small,but very rigidity and precision marking;
*High-speed and precisely spindle unit with servo motor driven;
*X,Y,Z linear guideway, servo driven;
*Equipped with Cloak type ATC(10pcs) (except XK7124L) and concentrated all of functions as vertical machine center

Standard Accs.:
*Automatic lubricating system;
*coolant system
*Working lamp

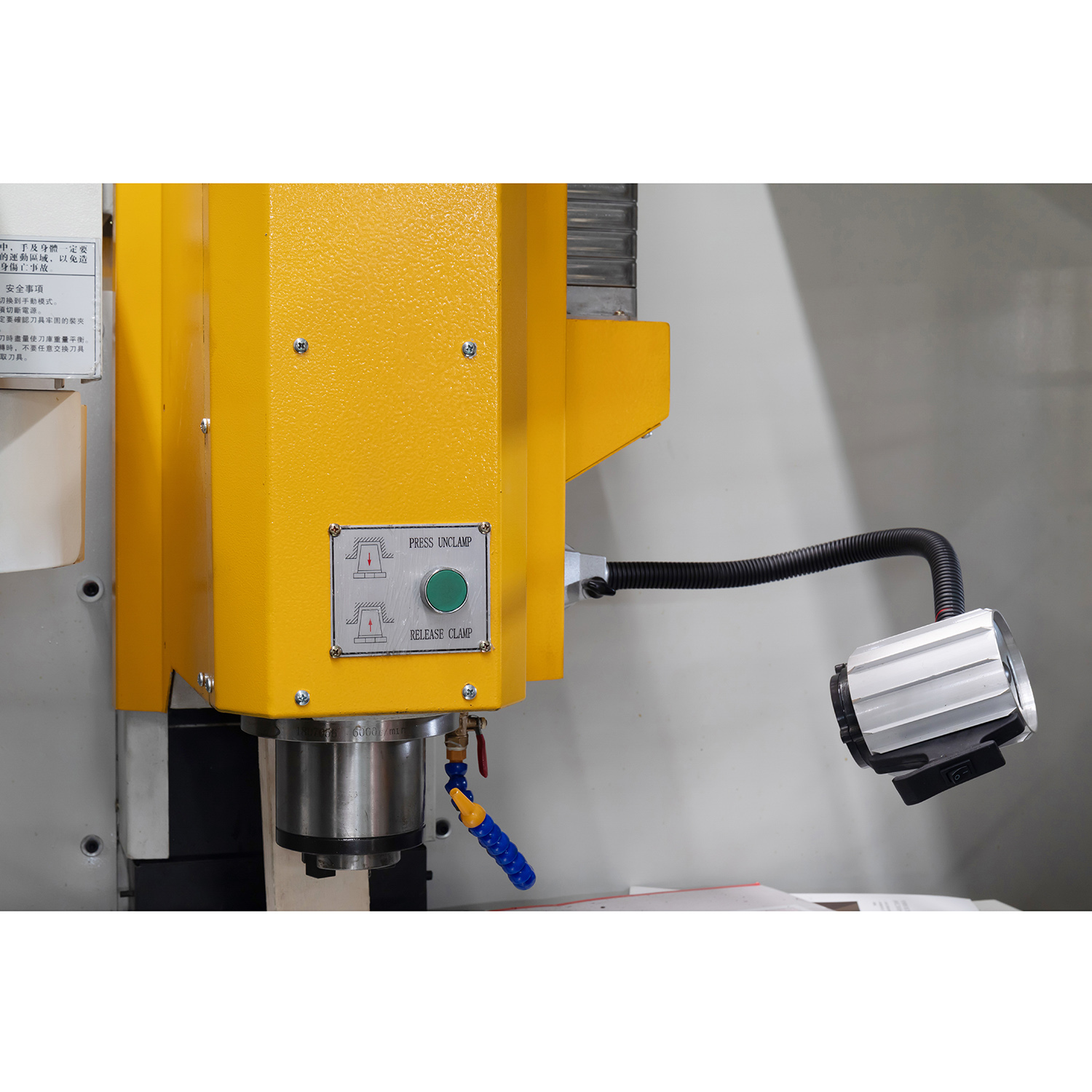

*Tool-released and clamped pneumatically
*Siemens 808D system
*Iron casting machine stand

Optional Accs.:
*Fanuc,GSK brand CNC control system
*Heightened column for XK7124L/VMC24L (Z travel: 50-550mm)
*900*240mm worktable
*160mm parallel vise
*Tool holder

Quantity:
  • XK7124L/VMC24L VMC25L VMC530L VMC420L
  • WHITE EAGLE
  • 8459619000
技术参数ModelXK7124L/VMC24LVMC25LVMC530LVMC420L
工作台尺寸(长x宽)Size of   worktable(L×W)(mm)810×2401000×250810×320260×800
T(槽宽*槽数*间距)T   slot(width ×qty×spaces)(mm)16×3×6016×3×6014×3×10016×3×63
工作台最大承重Max   loading weight on worktable(kg)100120350150
X/Y/Z轴行程X/Y/Z-Axis   travel(mm)380/240/370(470Optional)535×320×375550×330×450410×260×410
主轴鼻端到工作台面距离Distance   between spindle nose and table(mm)60-43050-425100-58590-500
主轴中心到立柱的距离Distance   between spindle center and column(mm)309345370315
主轴转速Spindle   speed(r/min)100-6000100-4000(6000/8000)60-800060-8000
主轴锥度Spindle   taperBT30BT30BT30BT30
刀具夹紧方式Tool   clamping wayPneumaticallyPneumaticallyPneumaticallyPneumatically
ATC容量(可选)ATC   capacity(optional)10101010
切削进给速度Feeding   speed(mm/min)0-20000-20001-100001-10000
三轴快速移动速度Rapid   feeding speed:X,Y,Z axis(m/min)15151515
定位精度Positioning   accuracy(mm)0.025±0.008±0.008±0.008
重复定位精度Repeatability   accuracy(mm)0.016±0.005±0.008±0.008
设定单位Min.set   unit(mm)0.0010.0010.0010.001
主电机功率Main   motor power (kw)2.2/3.71.5/2.25.5/7.53.7/5.5
进给电机功率Feeding   motor power:X/Y/Z Axis(kw)1.5/1.5/1.51/1/11/1/11/1/1
最大刀具尺寸Max.size   of tool(mm)Φ60×175Φ60×175Φ80×250Φ60×175
刀具最大重量Max.loading   weight of Tool(kg)3.53.573.5
机床净重(包括机架)N.W(include   machine stand)(kg)1000/1280170035002000
外形尺寸(长**高)Overall   size(L×W×H)(mm)1770×1650×21001516×1764×17082000×1750×21001800×1650×2000
包装尺寸(长**高)Packing   size(L×W×H)(mm)1900×1620×2480(2580)2250×1910×22802100×1850×21001900×1750×2000
装箱数量Loading   amount(20")6sets/40"GP6sets/40"GP6sets/40"GP6sets/40"GP
