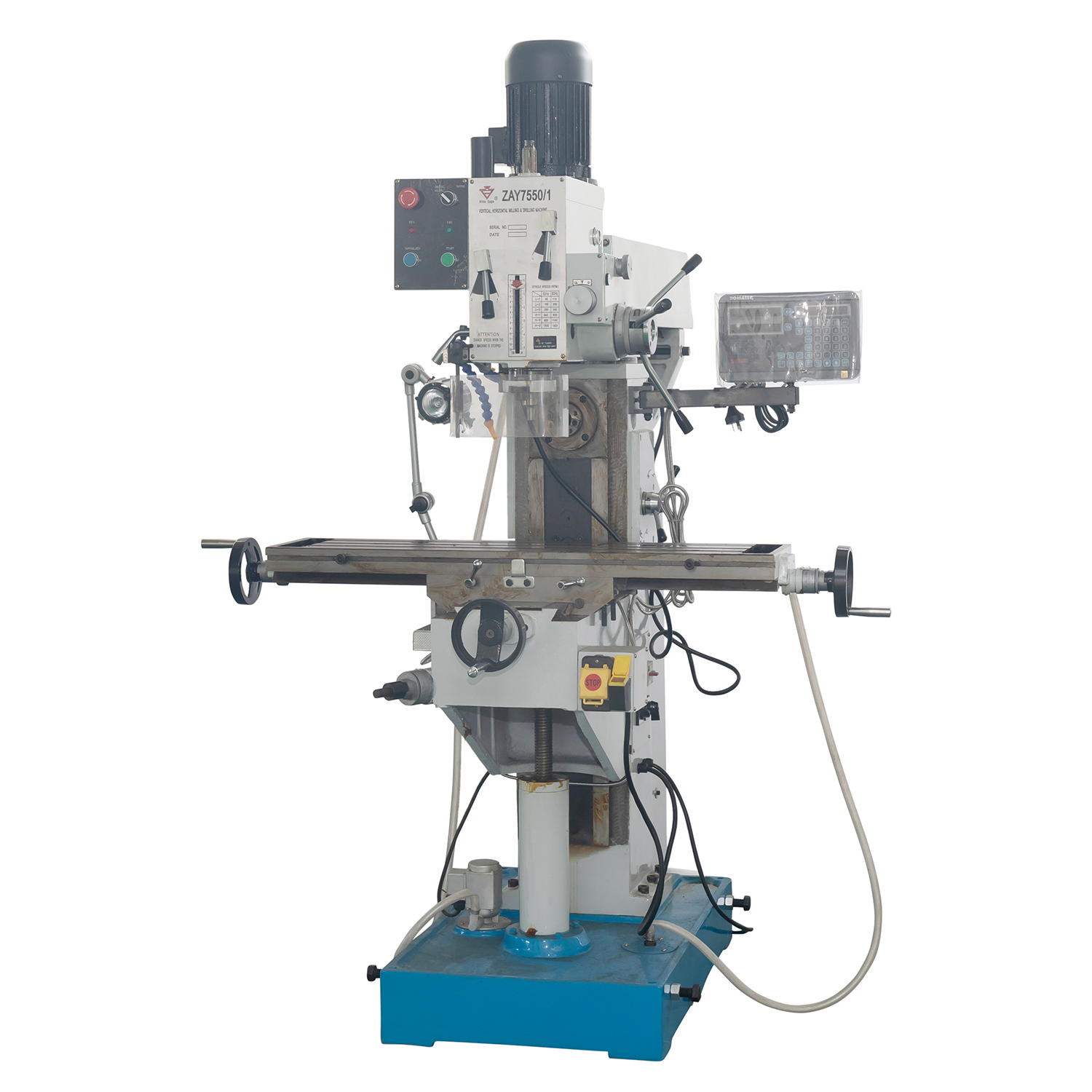

Horizontal & Vertical Milling Machine ZAY7550/1 ZAY7532/1 ZAY7550 ZAY7532

FEATURES:
* Vertical milling head can be moved forward or backword;
*Vertical milling head can swivel ±90° vertically and ±360° horizontally;
*Adjustable stops n table;
*Manual quill feed;
*High tensile casting iron elevative table;
*Double motor with powerful force.


Quantity:
  • ZAY7550/1 ZAY7532/1 ZAY7550 ZAY7532
  • WHITE EAGLE
  • 8459290000
项   目ITEMZAY7532ZAY7550ZAY7532/1ZAY7550/1
最大钻削直径Max.drilling capacityφ32mmφ50mmφ40mmφ45mm
最大铣削直径(立铣/卧铣)Max.milling capacity (end / face)φ25/100mmφ32/100mmφ32/100mmφ32/100mm
主轴箱回转角度(垂直方向)Swivel angle of headstock(perpendicular)        ±90°         ±90°        ±90°                 ±90°
主轴孔锥度(立铣/卧铣)spindle taper(end/face)M.T.3  M.T.4M.T.4 M.T.3  M.T.4M.T.4
主轴端至工作台距离Distance from spindle nose to worktable surface80-480mm
主轴行程Spindle travel130mm
横梁行程Beam travel500mm
主轴转速级数(立铣\卧铣)Step of spindle speed(end/face)6\12
主轴转速范围(立铣/卧铣)50HzRange of spindle speed(end/face)  50Hz80-1250 /38-1280 (r/min)90-1600 /38-1280 (r/min)
                         60Hz (4级电机)                                             60Hz (4 Poles)95-1500 /45-1540 (r/min)110-1920 /45-1540 (r/min)
主轴自动进给级数(立铣/卧铣)Step of spindle auto-feeding(end/face)//33
主轴自动进给范围(立铣/卧铣)Range of spindle auto-feeding(end/face)//0.12, 0.18, 0.250.12, 0.18, 0.25
工作台面积Worktable size800×240mm   1000×240mm   800×240mm   800×240mm
工作台前后行程Forward and afterward travel of worktable330mm
工作台左右行程Left and right travel of worktable585mm785mm585mm785mm
工作台垂直行程Vertical travel of worktable400mm
主轴轴线至立柱表面最小距离Min.distance from spindle axis to column290mm
电机功率(立铣/卧铣)Power(end/face)0.75KW/1.5KW1.5KW/1.5KW0.75KW/1.5KW1.5KW/1.5KW
冷却泵功率Cooling pump power0.04KW
净重/毛重Net weight/Gross weight430kg/480kg930kg/1030kg430kg/480kg950kg/1050kg
包装尺寸(长×宽×高)Packing size1850×750×1000mm1220×1350×1850mm1850×750×1000mm1220×1350×1850mm
装箱数Loading amount8pcs/20'container4pcs/20'container8pcs/20'container8pcs/20'container
